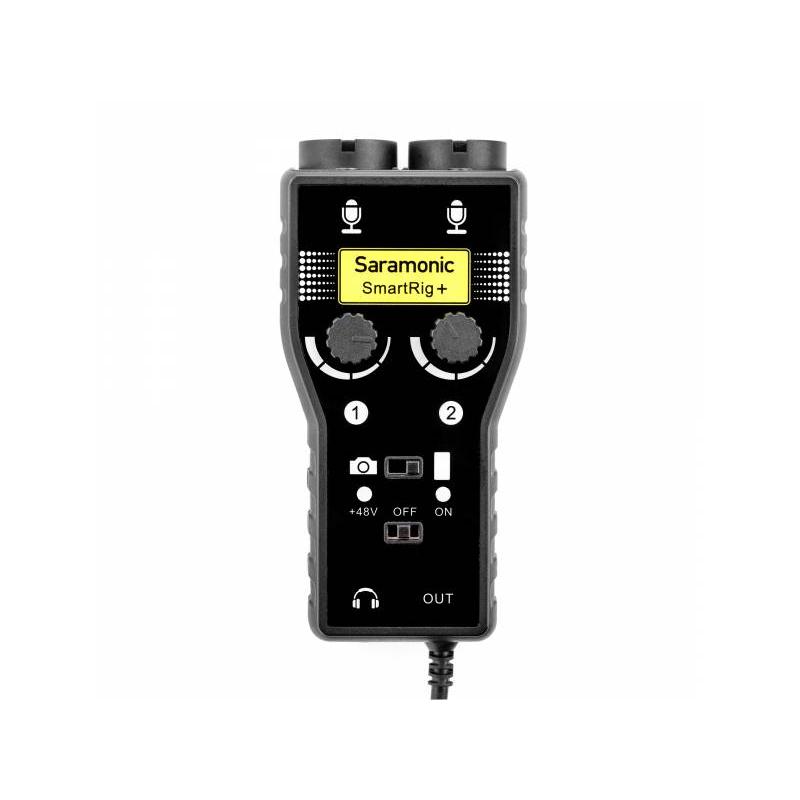

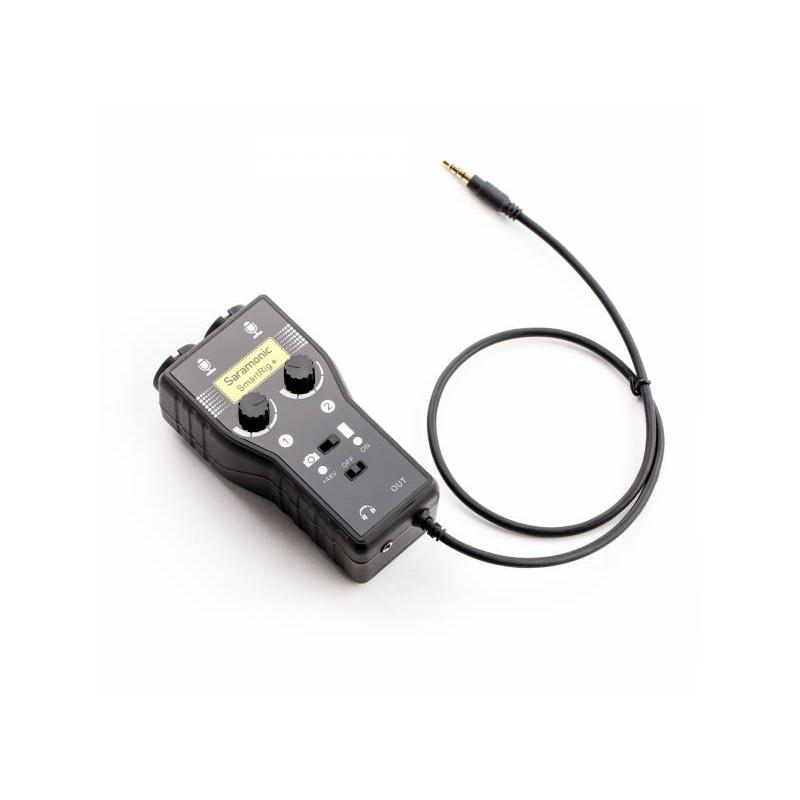

The Saramonic SmartRig+ is an audio adapter that allows the use of almost any audio equipment with recording devices such as VDSLR cameras, camcorders or smartphones. The SmartRig+ is equipped with two mini Jack (3.5 millimetre) inputs and two XLR / Jack (6.35 millimetre) inputs. These allow microphones, consoles or guitars to be connected to a recording device with a mini Jack (3.5 millimetre) connector. Independent level control for both supported channels, switching between mono and stereo modes, and a headphone output for listening make audio work easier. The adapter also offers phantom power support for microphones. The housing of the unit is made of high-quality plastic. The 1/4″ female tripod mount allows the adapter to be mounted on any photographic tripod and a wide range of other mounts. Specifications Power supply: 9 V battery 48V phantom power supply inputs: 2 x XLR / Jack 6.35 mm inputs. inputs: 2 x mini Jack 3.5 mm output: 1 x mini Jack 3.5 mm Input: 1 x mini Jack 3.5 mm response bandwidth: 20 Hz – 20 kHz harmonic distortion (THD): less than 0.01% @ 1 kHz, – 30 dBu signal-to-noise ratio (SNR): 80 dB @ 1 kHz, – 30 dBu independent level control for both channels + 20 dB ~ – ∞ adapter mounts: 1/4 “female tripod mount dimensions: 12 x 4 x 4 cm weight: 130 g Contents of the kit SmartRig+ adapter adapter pouch
