Apraksts

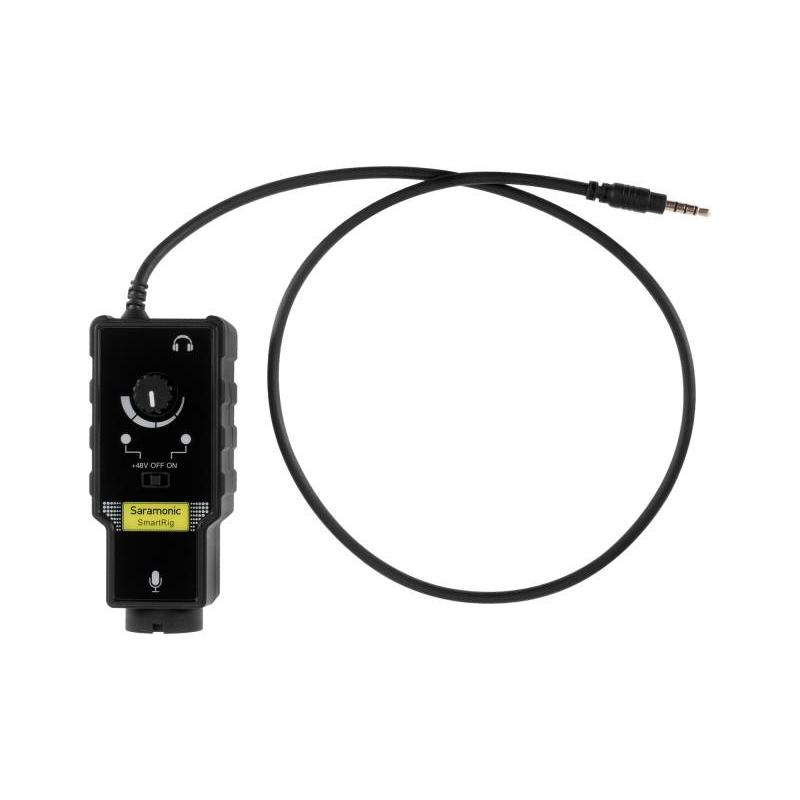

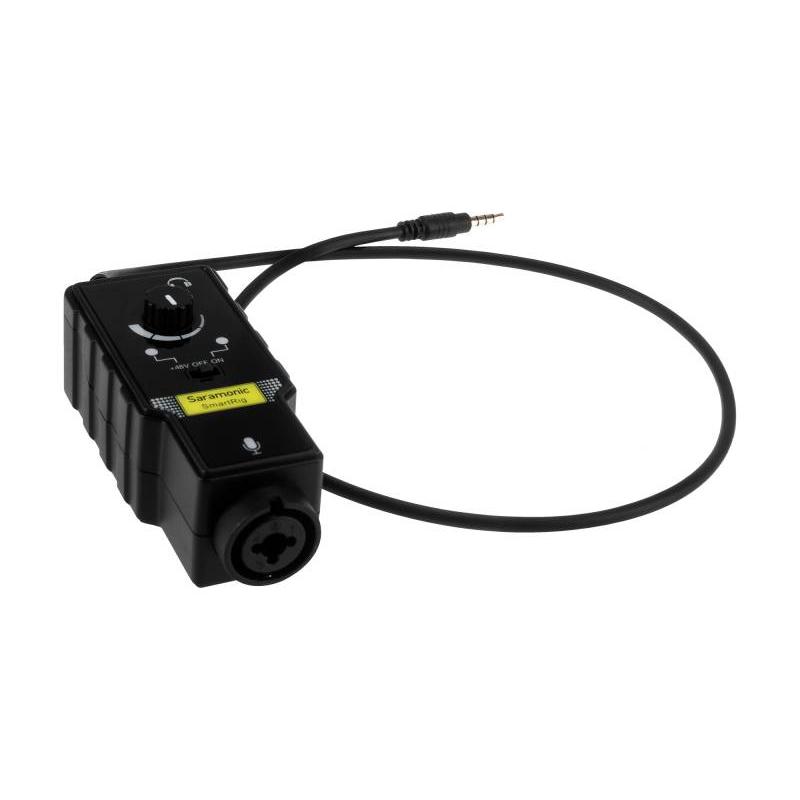

The Saramonic SmartRig II is an audio adapter that allows the combination of almost any audio equipment with mobile devices based on the iOS or Android platform. The SmartRig II is equipped with an XLR / Jack (6.35 millimetre) input, allowing the connection of a microphone, console or guitar. The adapter also offers phantom power support for microphones. The output signal is transferred to a smartphone or tablet via a mini Jack (3.5mm) cable. The signal level can be adjusted using a convenient knob. The headphone output in the mini Jack standard allows you to listen to the recorded material, making it easier to work with sound. The housing of the unit is made of high-quality plastic. Thanks to its small size and low weight, the device is easy to transport and store. It will easily fit into a guitar case, backpack or pocket. Specifications model: SmartRig II signal input: XLR socket / TRS jack (6.35 mm) signal output: mini Jack TRRS plug (3.5 mm) with 60 cm cable headphone output: mini Jack TRS plug (3.5 mm) frequency response: 20 Hz – 20 kHz (+/-1.5 dB) signal-to-noise ratio: -98 dB (with phantom power supply) harmonic distortion (THD): 0.025% phantom power supply +48 V maximum phantom type power supply: 13 mA power supply: 9 V battery dimensions: 8.8 x 4.1 x 4.2 cm weight: 75 g Compatibility Musical instruments and audio devices equipped with signal output: TRS jack connector (6.35 mm) XLR plug mobile devices equipped with a mini Jack TRRS (3.5 mm)
